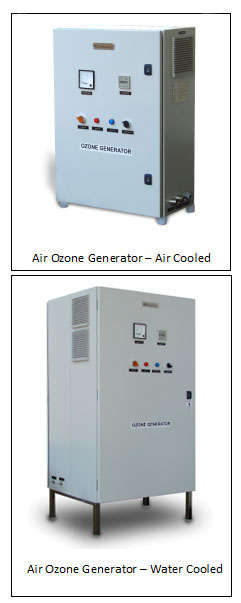

Air Ozone Generator India

Brand – CHEMOZONE™
Application - Air Disinfection | Odour Control
Technology - Corona Discharge
Feed Gas - Oxygen
Ozone Concentration - 4 to 10%
Ozone Output [Range] - 1 G/hr – 1,000 G/hr
Cooling Medium - Air [<10 G/hr]; Water [>10 G/hr]
Enclosure – IP 54 / IP 65 ; CE Marked / UL Approved


Chemtronics manufacture & exports worldwide. With our manufacturing expertise we are well experienced in ozone implementation engineering in diversified applications. With innovative techniques of integrating ozone technology in existing scheme is the key to successful installations.

Air ozonators are used for indoor air disinfection, enhance indoor air quality & odour control. These finds its diversified use in hotels, hospitals, pharmaceutical industries, dairy, food & beverage, cold storages, ware houses, production & packing. Ozone can effectively be blended in exhaust air to significantly reduce the foul & highly objectionable odours from the exhaust air.

Features :
Light commercial & Industrial use.
Low & medium ozone concentration 40 – 150 G/m³
Ozone output - 02 G/hr – 1,000 G/hr.
< 10 G/hr : Forced Air Cooled Ozone Cell with internal & external radiator fins.
Highly useful where cell cooling water is not feasible.
Generally very useful & effective on odor control & disinfection.
> 10 G/hr : Water Cooled Internal & outer Ozone cell electrodes
Generally very useful in Exhaust air odor control.

General Technical Specifications:
Ozone Out put : 02 G/hr – 1,000 G/hr
Ozone Concentration : 80 G/m - 140 G/m [w/v]
MOC of Ozone Cell : SS 316 L/Ceramic
MOC of Enclosure : Carbon Steel
Enclosure Finish : RAL 7035, Structure Power Coated
Dielectric : Precision Ceramic
Corona Discharge : 0.6 - 0.9 W/cm
Power Efficiency : 6.0 - 8.0 kw/kg of O³
Cell Electrode Cooling : Internal & External
Cell Cooling Medium : Forced Air/Water
Power Supply : Switch Mode Power Supply (SMPS)
Power Amplifier : IV - Generation IGBT Technology
High Frequency Transformer : Forced Air Cooled Ferrite Core
Indicators : Power + Stand-by + Ozone ON
Variable Ozone Control : 25 % - 100 %
Service Indicator : Non Re-settable Hr Meter
0 0 Operating Temperature : 15 °C - 40 °C
Line Voltage : 230 V ac ; 50 Hz / 110 V ac ; 60 Hz
Installation Condition : Floor/Wall
Specified Life : 20,000 Working Hrs
Standard Usage : 24 x 7 x 365 - Commercial & Industrial Use
Feed Gas : Oxygen
Concentration : > 90%
0 Due Point : < - 45 °C
Air Ozone Generator OG/LC [ Air Cooled Cell ] Models:
Model No. Ozone Output(gm/hr) Oxy. Flow (LPM) Concentration
(mg/l)
Dimension mm (H X W X D) Net Wt (Kg) Power (Kw) Data Sheet
OG/LC - 2 1.2 -2.5 0.5 - 2.0 40.0 - 23.0 300 x 250 x 155 7 20
OG/LC - 3 2.5-3.5 0.5 - 2.0 82.0 - 49.0 400 x 300 x 210 10 80
OG/LC - 5 3.0 - 6.0 1.0 - 3.0 75.0 - 45.0 500 x 400 x 210 12 80
OG/LC - 10 6.0 - 12.0 2.0 - 5.0 95.0 - 45.0 500 x 400 x 210 13 100
OG/LC - 20 18.0 - 22.0 3.0 - 5.0 100.0 - 75.0 600 x 400 x 210 18 250
OG/LC - 40 30.0 - 43.0 6.0 - 10.0 100.0 - 65.0 700 x 500 x 210 32 400


Air Ozone Generator OG/HC [ Water Cooled Cell ] Models:
Model No. Ozone Output(gm/hr) Oxy. Flow (LPM) Concentration
(mg/l)
Dimension mm (H X W X D) Net Wt (Kg) Power (Kw) Data Sheet
OG/HC-7 5-7 1-4 80-50 500x400x425 28 0.15
OG/HC-12 10-16 2-5 70-55 600x500x425 30 0.3
OG/HC - 15 5 - 18 1 - 4 120 - 80 500 x 400 x 425 28 0.15
OG/HC - 35 13 - 20 2 - 5 120 - 80 600 x 500 x 425 30 0.3
OG/HC - 50 22 - 50 3 - 10 130 - 100 600 x 500 x 425 35 0.15
OG/HC - 75 30 - 72 5 - 15 130 - 100 700 x 500 x 525 55 0.3
OG/HC - 100 50 - 90 8 - 20 130 - 100 1000 X 600 X 525 90 0.5
OG/HC - 150 55 - 140 10 - 30 130 - 100 800 X 600 X 525 90 0.7
OG/HI - 200 130 - 180 17 - 40 130 - 100 1000 X 600 X 525 95 1.6
OG/HI - 300 200 - 250 30 - 60 130 - 100 1000 X 1000 X 525 125 2.4
